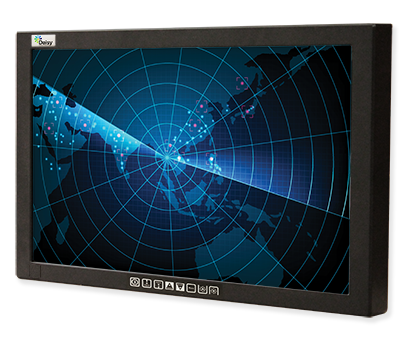

Rugged VESA or panel mount monitor with 24" color LCD display. Housed in a powder coated machined aluminum enclosure, this military grade monitor is suitable for demanding military applications. Optional KVM extender allows the monitor to be installed away from computer.
RATINGS:
• Shock and MIL-STD-810
• EMI MIL Standard 461 & 464
FEATURES:
• Powder Coated Nickel Plated Machined Aluminum, Plated CRS, Stainless Steel
• 24” LCD Color Display
• Panel Mount Design
• Standard VESA Mounting Pattern
• On Screen Display (OSD)
• Suitable for Demanding Military Applications
• 1000 nits Standard Brightness
• 1920x1080 Resolution
• 18-36 VDC
Unit of Measure
Materials
|
Physical Dimension
|
Environmental
|
Electrical
|
Flat Panel Specifications
|
Connections
|
Note
Materials
Enclosure |
N/A Powder Coated Aircraft Grade Aluminum/Nickel Plated Steel |
Viewpoint |
N/A Polycarbonate Standard |
Design |
N/A MIL-STD-461 MIL-STD-464 MIL-STD-810 |
Physical Dimension
Dimensional Drawing |
N/A
2434MA Drawing |
Height |
N/A 15.25 in |
Width |
N/A 23.56 in |
Depth |
N/A 4.04 in |
Weight |
N/A 24.4 lb |
Environmental
Ingress Protection |
N/A Drip Proof National Electrical Manufacturers Association (NEMA) 12 |
Operating Temperature |
N/A -20 to 50 ºC-4 to 122 ºF |
Storage Temperature |
N/A -30 to 80 ºC-22 to 176 ºF |
Shock |
N/A MIL-STD-810 |
Electromagnetic Interference (EMI)/Radio Frequency Interference (RFI) |
N/A MIL-STD-461 MIL-STD-464 |
Flat Panel Specifications
Display Size |
N/A 24 in |
Maximum Resolution |
N/A 1920 x 1080 |
Typical Viewing Angle |
N/A 89 x 89 x 89 x 89 º |
Standard Brightness |
N/A 1000 nits |
Backlight |
N/A LED |
